Description
PB – 9030W, both AC and DC power offered, support 2 SDI signal inputs with 3G/HD/SD auto-detected, a variety of signal inputs-SDI, HDMI/DVI, Analog. Good picture quality with faithful color reproduction and select table markers provides an ideal and affordable solution for many broadcast and professional applications.
Product Highlight
- 9″ 1280×768 Resolution
- LED back light
- Support AC12V & DC100-240V
- PIP/PBP in rapid swap
- Histogram/Vector scope
- 3G/HD/SD-SDI inputs & loop through
- Composite & Component Input & loop through
- 1:1 Pixel mapping modes for SD/HD
- ×9 Zoom
- H/V Delay
- Full scan/Under Scan/Over Scan
- 8ch Embedded Audio Meter
- Color Temperature(9300K, 6500K, 5600K, User)
- OSD Setting
- Blue Only/Mono
- PAL/NTSC/SECAM
- Various Markers
- RS-232 Remote Control
- Support RGB gain and offset setting
- Tally
Specifications
| LCD |
| Display Size |
9〞 |
| High Resolution |
1280×768 |
| Aspect Ratio |
16:10 |
| Wide Viewing Angle |
170°(H) / 170°(V) |
| Pixel Pitch |
0.150×0.150(mm) |
| Color Depth |
16.7M |
| Response Time |
18ms |
| Back Light |
LED |
| Brightness |
400cd/m2 |
| Contrast Ratio |
800:1 |

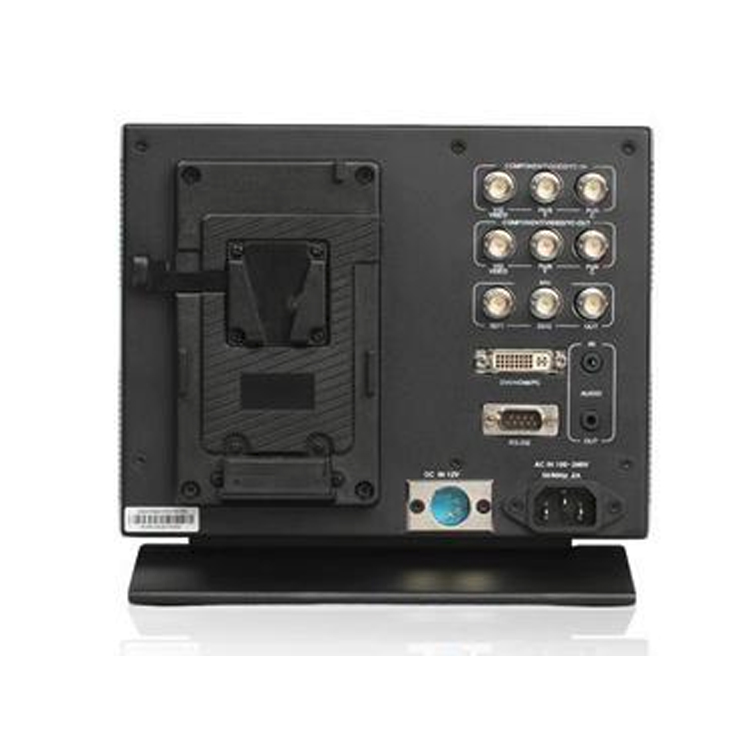

| Input |
| 2 × BNC |
SDI1/2 Channel Input (3G/HD/SD-SDI Auto-Detected) |
| 3 × BNC |
YPbPr/Video/ Y/C |
| 1 × DVI |
DVI/HDMI/VGA Input |
| Output |
| 1 × BNC |
SDI Output (3G/HD/SD-SDI Auto-Detected) |
| 3 × BNC |
YPbPr/Video/ Y/C |
| Compatible SDI Formats |
| SMPTE-425M |
1080p（50/59.94/60) |
| SMPTE-274M |
1080i(60/59.94/50)
1080p(30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF) |
| SMPTE-296M |
720p(60/59.94/50/30/29.97/25/24/23.98) |
| SMPTE-260M |
1035i(60/59.94) |
| SMPTE-125M |
480i(59.94) |
| ITU－R BT.656 |
576i(50) |
| Audio In / Out |
| SDI Audio In |
8 Channel Embedded Audio |
| Audio Meter Display(VU+PPM) |
Audio Level Meter Display |
| Analog Audio Input |
3.5mm Headset Switch Cable |
| Audio Headset Output |
3.5mm Headset Jack |
| Built-in Speaker |
2.5W×2 |
| General |
| Operating Temperature |
-10℃～50℃ |
| Input Voltage |
DC12V / AC 100-240V 50/60Hz |
| Power Consumption |
26W |
| Power-Saving Mode |
Turn off unimportant Key Automatically if No Signal Input |
| Unit/Packing Dimension |
218×207×77(mm)(mm) / 312x242x26(mm) |
| Net/Gross Weight |
1.8KG / 2.8KG |
| Shell Materials |
Aluminum on Front-Shell/Base Supporter/Rust-Proof iron on Back-Shell |
| Accessory |
Power Adapter/Carrying Bag/Sun-hood |
| Optional |
DV/V-mount/AB battery mount/Magic arm/D-Tap Cable/Carry case |
