PB-2451W
Model No. : PB2451W
Display Size : 24"
Resolution : 1920X1080
Aspect Ratio : 16:9
Introduction : Full HD 24" Monitor,support 3G/HD-SDI, PIP/PBP for 2 SDI,excellent features waveform, vectorscope, Histogram,UMD,Picture flip, Pixel measure,Focus ass
Description
PB-2451W,with outstanding black level and high-end functionality to reproduce the most accurate color possible on a LCD monitor,which provide exceptional performance for critical monitoring and viewing.
Product Highlight
- 24″ 1920×1080 native Resolution
- 3G/HD/SD-SDI Input&Loop through
- Support 3G-SDI, 4:4:4 signals (SMPTE 425M A/B)
- Composite&Component Input
- Dual Pictures(PIP/PBP) for 2 SDI Signals
- PIP/PBP（Size / Position Adjustable,Alpha Blending( PIP )）
- PIP/PBP in rapid swap
- Waveform(Y/CbCr/Wide Type,Waveform Alarm)
- Vectorscope (Vector Scale 75%/100%)
- Histogram (Y / RGB)
- Pixel Measure(Y/R/G/B Values Comparision)
- Picture Flip
- ×9 Zoom
- H/V Delay
- Focus Assist
- Blue Only/Mono
- False Color/Zebra
- 8ch Embedded Audio Meter(H/V)
- Full scan/Over Scan
- Color Temperature(9300K, 6500K, 5600K,User)
- UMD Support(ID/Positiion/Color/User Rename)
- Time Code（VITC1,VITC2,LTC）
- PAL/NTSC/SECAM
- OSD Setting
- Various Markers
- Image Size Selectable
- RS-232/LAN Remote Control
- Tally
Specifications
| LCD |
| DISPLAY SIZE |
24〞 |
| HIGH RESOLUTION |
Full HD 1920×1080 |
| ASPECT RATIO |
16:9 |
| WIDE VIEWING ANGLE |
178°(H) / 178°(V) |
| PIXEL PITCH |
0.2745×0.2745(mm) |
| COLOR DEPTH |
16.7M |
| RESPONSE TIME |
10ms |
| BACK LIGHT |
LED |
| BRIGHTNESS |
250cd/m2 |
| CONTRAST RATIO |
1000:1 |

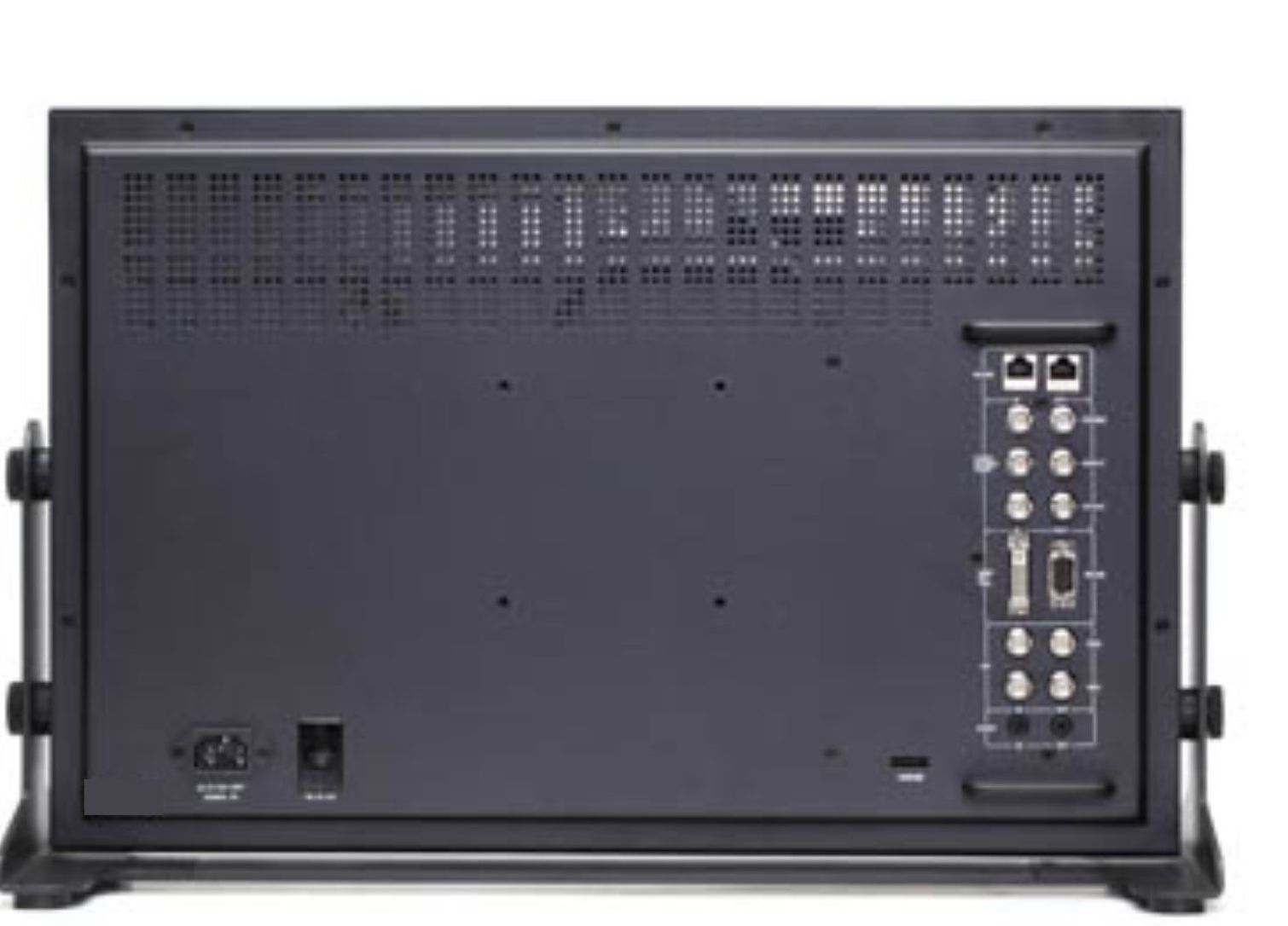

| Input |
| 2 × BNC |
SDI1/2 Channel Input (3G/HD/SD-SDI Auto-Detected) |
| 3 × BNC |
YPbPr/Video/Y/C |
| 1 × HDMI/DVI/VGA |
HDMI/DVI/VGA Input |
| Output |
| 2 × BNC |
SDI1/2 Channel Output (3G/HD/SD-SDI Auto-Detected) |
| 3 × BNC |
YPbPr/Video/Y/C |
| Compatible SDI Formats |
| SMPTE-425M-A/B |
4:2:2 YCbCr 10-bit |
1080p(50/59.94/60) |
| 4:4:4 YCbCr/RGB 10-bit
4:4:4 YCbCr/RGB 12-bit |
1080i(60/59.94/50) |
| 1080p(30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF) |
| 4:2:2 YCbCr 12-bit |
1080i(60/59.94/50) |
| 1080p(30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF) |
| 4:4:4 YCbCr/RGB 10-bit |
720p(60/59.94/50/30/29/25/24/23.98) |
| SMPTE-274M |
1080i(60/59.94/50) |
| 1080p(30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF) |
| SMPTE-296M |
720p(60/59.94/50/30/29/25/24/23.98) |
| SMPTE-260M |
1035i(60/59.94) |
| SMPTE-125M |
480i(59.94) |
| ITU－R BT.656 |
576i(50) |
| Audio In / Out |
| SDI Audio In |
8 Channel Embedded Audio |
| Audio Meter Display(VU+PPM) |
H/V Audio Level Meter Display |
| Analog Audio Input |
3.5mm Headset Switch Cable |
| Audio Headset Output |
3.5mm Headset Jack |
| Built-in Speaker |
2.5W×2 |
| General |
| Operating Temperature |
-10℃～50℃ |
| Input Voltage |
AC 100-240V 50/60Hz |
| Power Consumption |
40W |
| Power-Saving Mode |
Turn off unimportant Key Automatically if No Signal Input |
| Unit Dimension(w/o stand) |
566.4*371*75.5(mm) |
| Net/Gross Weight |
8.78KG / 10.4KG |
| Shell Materials |
Aluminum on Front-Shell/Base Supporter/Rust-Proof iron on Back-Shell |
| Accessory |
Power Cord /Desktop stand |
| Optional |
DVI-HDMI adapter/Wall-Mount VESA bracket |
¤specifications may be changed without prior notice.
