Description
PB-2460W,a remarkable new generation monitor, supports 3D-LUT color calibration,3Gbs SDI 4:4:4 12Bit signals,no compression,no loss,more perfect display of image,these monitors are provided with waveform,vectorscope,histogram and other professional broadcast features, suitable for most demanding application of image quality of high-end broadcast shooting, editing and production.
Product Highlight
- 24″ 1920×1200 native Resolution
- 3D Lut color calibration,and color space selection:REC709,EBU,SMPTE-C,DCI
- P3,USER1,USER2,USER3
- Gamma selection: 1.0~2.8 and C-Log,S-Log etc
- Dual Pictures(PIP/PBP) for 2 SDI Signals
- 3G/HD/SD-SDI auto-detected,support 3Gbs SDI 4:4:4 12Bit signals
- PIP/PBP in rapid swap
- Waveform(Y/CbCr,wide type,Waveform Alarm)
- Vectorscope (Vector Scale 75%/100%)
- Histogram (Y / RGB)
- Pixel Measure(Y/R/G/B Values Comparision)
- Picture Flip
- ×9 Zoom
- H/V Delay
- Focus Assist
- Blue Only/Mono
- False Color/Zebra
- 8ch Embedded Audio Meter(H/V)
- Full scan/Over Scan
- Color Temperature(9300K, 6500K, 5600K,User)
- UMD Support(ID/Positiion/Color/User Rename)
- OSD Setting
- PAL/NTSC/SECAM
- Timecode display (VITC1,VITC2,LTC)
- Various Markers
- Image Size Selectable
- Remote control and firmware upgrade by Ethernet/RS-232
- Tally
Specifications
LCD |
Display Size |
24〞 |
High Resolution |
Full HD 1920×1200 |
Aspect Ratio |
16﹕10 |
Wide Viewing Angle |
178°(H) / 178°(V) |
Pixel Pitch |
0.270×0.270(mm) |
Color Depth |
16.7M |
Back Light |
LED |
Brightness |
350cd/m2 |
Contrast Ratio |
1000:1 |

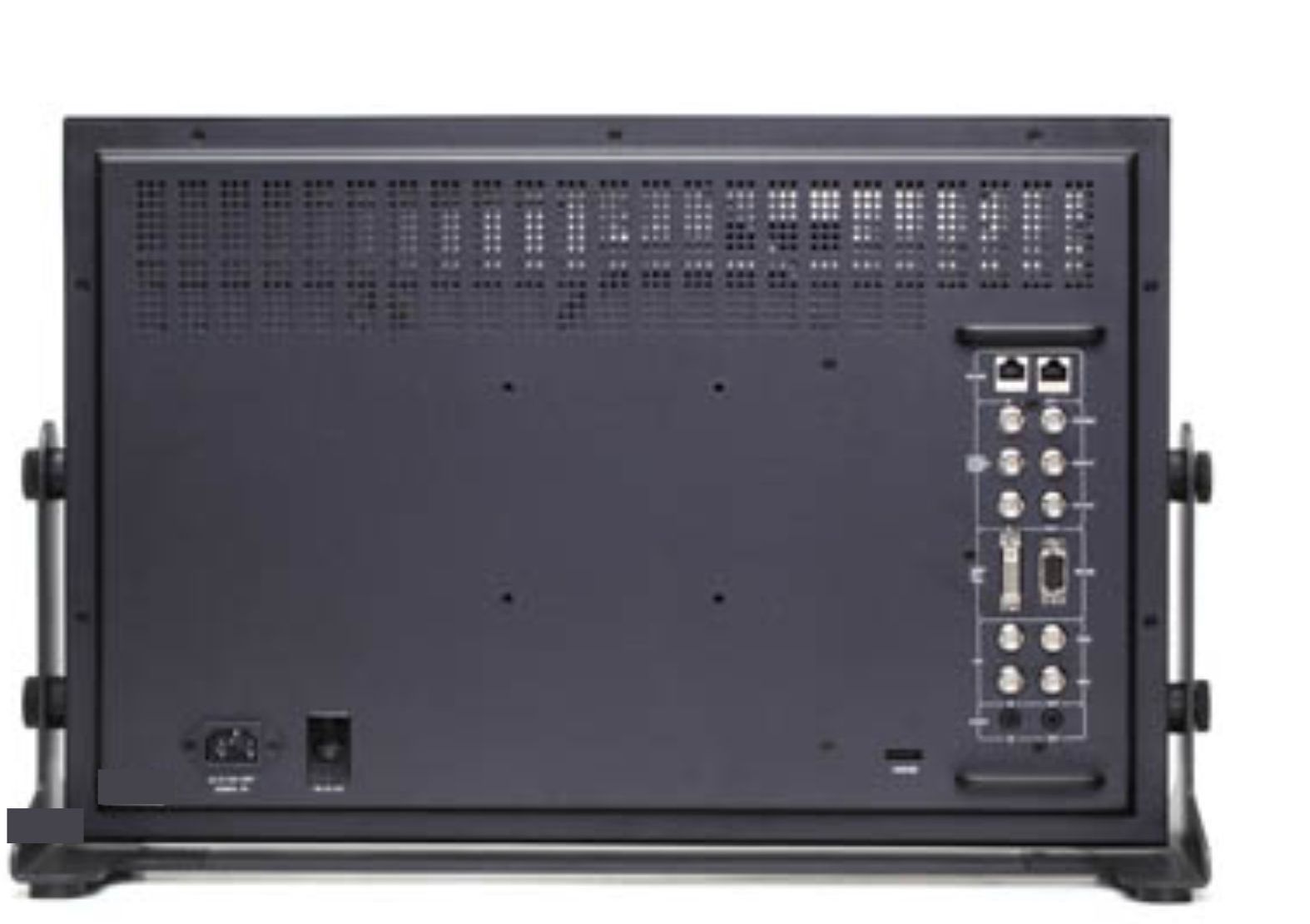

Input |
2 × BNC |
SDI1/2 Channel Input (3G/HD/SD-SDI Auto-Detected) |
3 × BNC |
YPbPr/Video/Y/C |
1 × HDMI/DVI/VGA |
HDMI/DVI/VGA Input |
Output |
2 × BNC |
SDI1/2 Channel Output (3G/HD/SD-SDI Auto-Detected) |
3 × BNC |
YPbPr/Video/Y/C |
Compatible SDI Formats |
SMPTE-425M-A/B |
4:2:2 YCbCr 10-bit |
1080p(50/59.94/60) |
4:4:4 YCbCr/RGB 10-bit
4:4:4 YCbCr/RGB 12-bit |
1080i(60/59.94/50) |
1080p(30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF) |
4:2:2 YCbCr 12-bit |
1080i(60/59.94/50) |
1080p(30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF) |
4:4:4 YCbCr/RGB 10-bit |
720p(60/59.94/50/30/29/25/24/23.98) |
SMPTE-274M |
1080i(60/59.94/50) |
1080p(30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF) |
SMPTE-296M |
720p(60/59.94/50/30/29/25/24/23.98) |
SMPTE-260M |
1035i(60/59.94) |
SMPTE-125M |
480i(59.94) |
ITU-R BT.656 |
576i(50) |
Audio In / Out |
SDI Audio In |
8 Channel Embedded Audio |
Audio Meter Display(VU+PPM) |
H/V Audio Level Meter Display |
Analog Audio Input |
3.5mm Headset Switch Cable |
Audio Headset Output |
3.5mm Headset Jack |
Built-in Speaker |
2.5W×2 |
General |
Operating Temperature |
-10℃~50℃ |
Input Voltage |
AC 100-240V 50/60Hz / DC 12V |
Power Consumption |
45W |
Power-Saving Mode |
Turn off unimportant Key Automatically if No Signal Input |
Unit Dimension(w/o stand) |
566.4*407.3*76.1(mm) |
Net/Gross Weight |
7.6KG / 10.4KG |
Shell Materials |
Aluminum on Front-Shell/Base Supporter/Rust-Proof iron on Back-Shell |
Accessory |
Power Cord /Desktop stand |
Optional |
DVI-HDMI adapter/Wall-Mount VESA bracket |
specifications may be changed without prior notice.
