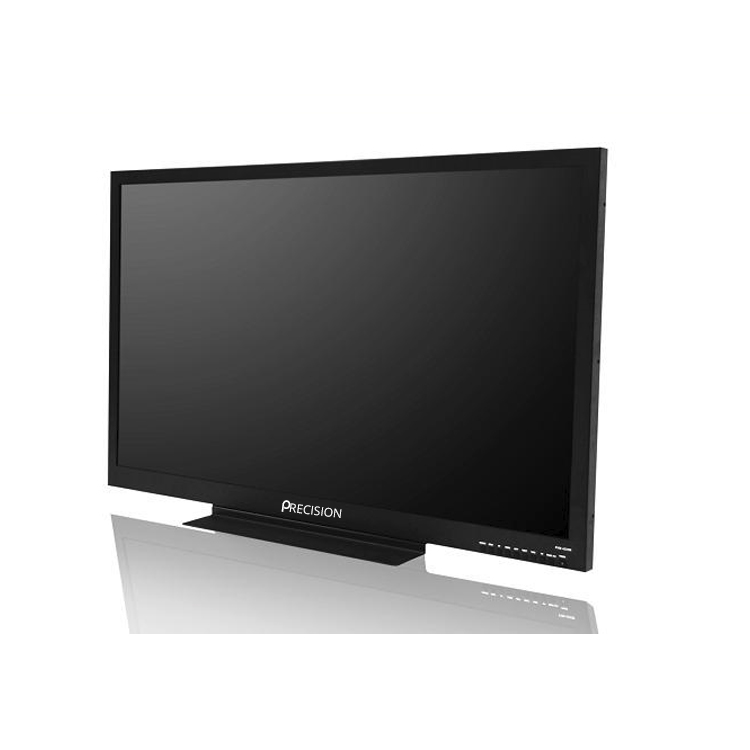

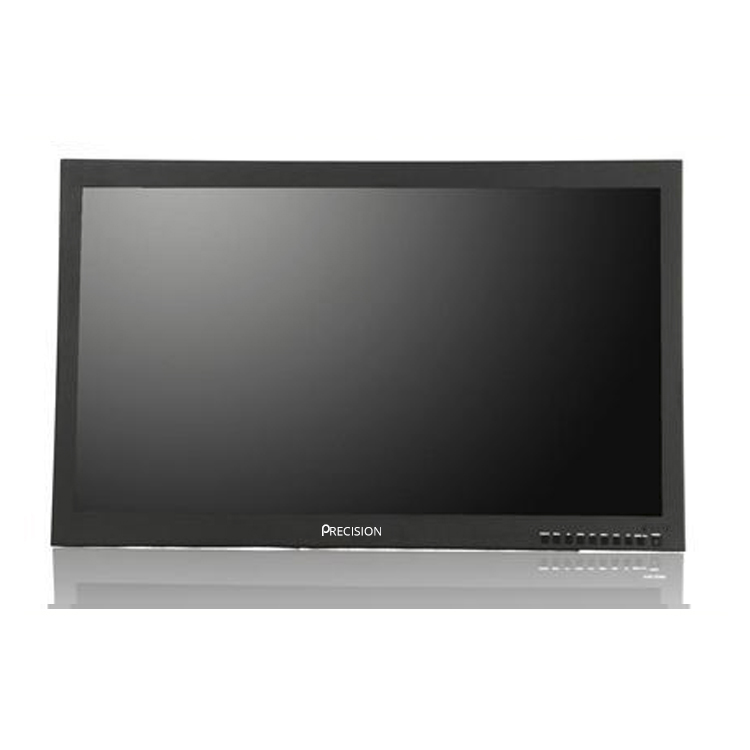

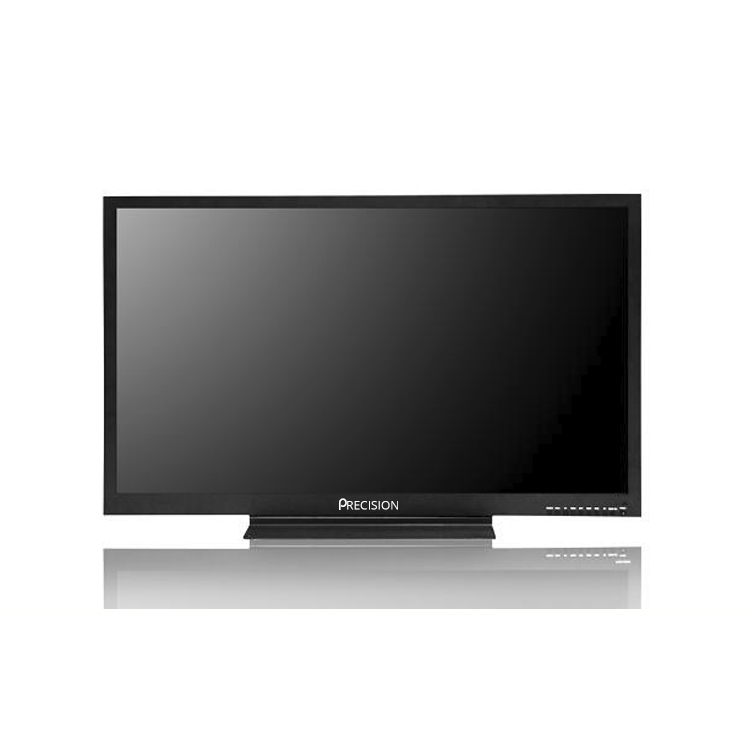

PB – 5550W
Model No. : PB - 5550W
Display Size : 55〞
Resolution : 1920×1080
Aspect Ratio : 16﹕9
Introduction : 55" full HD, 3G/HD-SDI Broadcast Monitor, waveform/vector features with multi-format: 3G/HD/SD-SDI, DVI/HDMI/VGA, Composite/Component, PIP/PBP for 2 SD…
Description
PB – 5550W with PIP/PBP support dual SDI signals display simultaneously and more excellent performance like waveform, histogram, vector scope etc, offer perfect solution for studio, broadcast, monitor wall, high-end video conference applications etc.
Product Highlight
- 55″ 1920×1080 Resolution
- LED backlight
- Wide Viewing Angle 178°(H)/178°(V)
- 3G/HD/SD-SDI Input&Loop through
- Composite&Component Input
- Dual Pictures (PIP/PBP) for 2 SDI Signals
- PIP/PBP(Size / Position Adjustable, Alpha Blending( PIP ))
- PIP/PBP in rapid swap
- Waveform(Y/CbCr/Wide Type,Waveform Alarm)
- Vectorscope (Vector Scale 75%/100%)
- Histogram (Y / RGB)
- Pixel Measure(Y/R/G/B Values Comparision)
- PIcture Flip
- ×9 Zoom
- H/V Delay
- Focus Assist
- Blue Only/Mono
- False Color/Zebra
- 8ch Embedded Audio Meter(H/V)
- Time Code(VITC1,VITC2,LTC)
- OSD Setting
- PAL/NTSC/SECAM
- Various Markers
- Image Size Selectable
- RS-232 Remote Control
- Tally
Specifications
LCD |
Display Size |
55″ |
High Resolution |
1920×1080 |
Aspect Ratio |
16:9 |
Wide Viewing Angle |
178°(H) / 178°(V) |
Pixel Pitch |
0.63×0.63(mm) |
Color Depth |
1.073 Billion |
Response Time |
5ms |
Back Light |
LED |
Brightness |
500cd/m2 |
Contrast Ratio |
4000:1 |

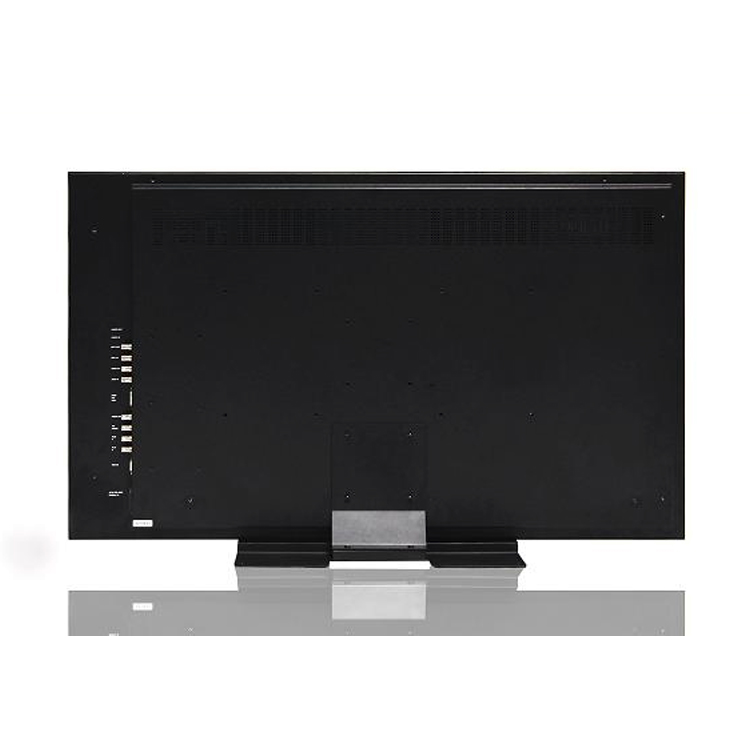

Input |
2 × BNC |
SDI1/2 Channel Input (3G/HD/SD-SDI Auto-Detected) |
3 × BNC |
YPbPr/Video/Y/C |
1 × HDMI/DVI/VGA |
HDMI/DVI/VGA Input |
Output |
2 × BNC |
SDI1/2 Channel Input (3G/HD/SD-SDI Auto-Detected) |
1 × BNC |
Video |
Compatible SDI Formats |
SMPTE-425M |
1080p(50/59.94/60) |
SMPTE-274M |
1080i(60/59.94/50)
1080p(30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF) |
SMPTE-296M |
720p(60/59.94/50/30/29.97/25/24/23.98) |
SMPTE-260M |
1035i(60/59.94) |
SMPTE-125M |
480i(59.94) |
ITU-R BT.656 |
576i(50) |
Audio In / Out |
SDI Audio In |
8 Channel Embedded Audio |
Audio Meter Display(VU+PPM) |
H/V Audio Level Meter Display |
Analog Audio Input |
3.5mm Headset Switch Cable |
Audio Headset Output |
3.5mm Headset Jack |
Built-in Speaker |
2.5W×2 |
General |
Operating Temperature |
-10℃~50℃ |
Input Voltage |
AC 100-240V 50/60Hz |
Power Consumption |
300W |
Power-Saving Mode |
Turn off unimportant Key Automatically if No Signal Input |
Unit/Packing Dimension |
1306x784x102(mm) / 1460x965x315(mm) |
Net/Gross Weight |
35.0KG / 37.92KG |
Shell Materials |
Aluminum on Front-Shell/Base Supporter/Rust-Proof iron on Back-Shell |
Accessory |
Power Cord / Fastening screws / Manual |
Optional |
DVI-HDMI adapter/Wall-Mount VESA bracket |
Specifications may be changed without prior notice. |
