PB – 2250W
Model No. : PB - 2250W
Display Size : 21.5"
Resolution : 1920x1080
Aspect Ratio : 16:9
Introduction : 21.5" FULL HD 3Gbs 4:4:4 broadcast monitor, with waveform, vectorscope, PIP/PBP for 2 SDI, Histogram, UMD, Picture flip, Pixel measure, Focus assist, Zebra,…
Description

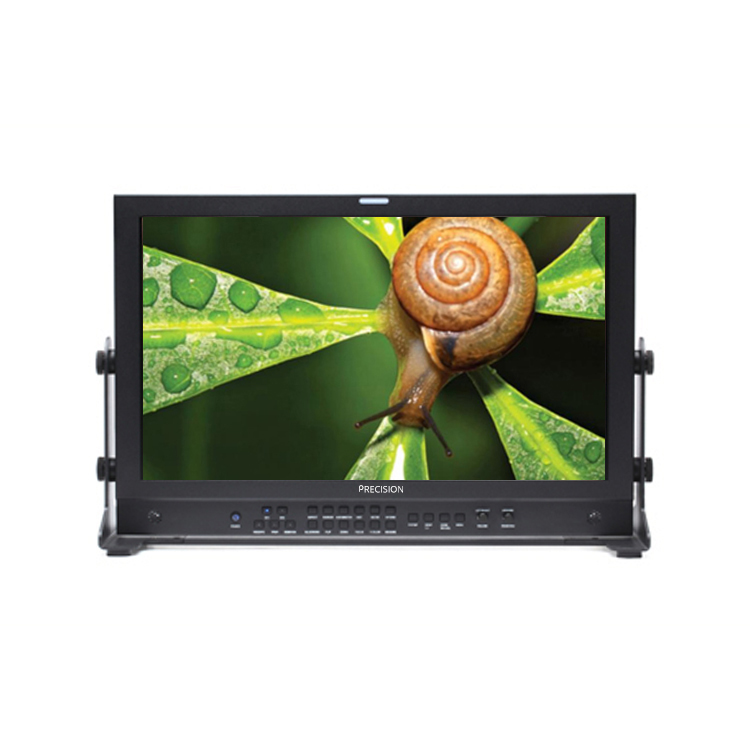

PB – 2250W a 21.5” high performance LCD monitor offers native 1920 x 1080 full HD resolution,supports both DC and AC power, full video formats including 3Gbs SDI 4: 4: 4 signals and professional features. True color processing with full broadcasting functions such as vermiform, histogram, pixel measure and range error, and more functionality, at a price that fits your budget.
Product Highlight
- 21.5″ 1920×1080 native Resolution
- 3G/HD/SD-SDI Input&Loop through
- Composite&Component Input
- Dual Pictures(PIP/PBP) for 2 SDI Signals
- PIP/PBP(Size / Position Adjustable,Alpha Blending( PIP ))
- Support 3G-SDI, 4:4:4 signals (SMPTE 425M A/B)
- Waveform(Y/CbCr,Wide Type,Waveform Alarm)
- Vector scope (Vector Scale 75%/100%)
- Histogram (Y / RGB)
- Pixel Measure(Y/R/G/B Values Comparison)
- Picture Flip
- ×9 Zoom
- H/V Delay
- Focus Assist
- Blue Only/Mono
- False Color/Zebra
- 8ch Embedded Audio Meter(H/V)
- Full scan/Over Scan
- Time code display (VITC1,VITC2,LTC)
- UMD Support(ID/Position/Color/User Rename)
- PAL/NTSC/SECAM
- Various Markers
- Two power supply ways: DC IN and AC IN
- RS-232/RS-485 Remote Control
- Tally
Specifications
| LCD |
| Display Size |
21.5″ |
| High Resolution |
Full HD 1920×1080 |
| Aspect Ratio |
16:9 |
| Wide Viewing Angle |
178°(H) / 178°(V) |
| Pixel Pitch |
0.248×0.248(mm) |
| Color Depth |
16.7M |
| Response Time |
5ms |
| Back Light |
LED |
| Brightness |
300cd/m2 |
| Contrast Ratio |
1000:1 |

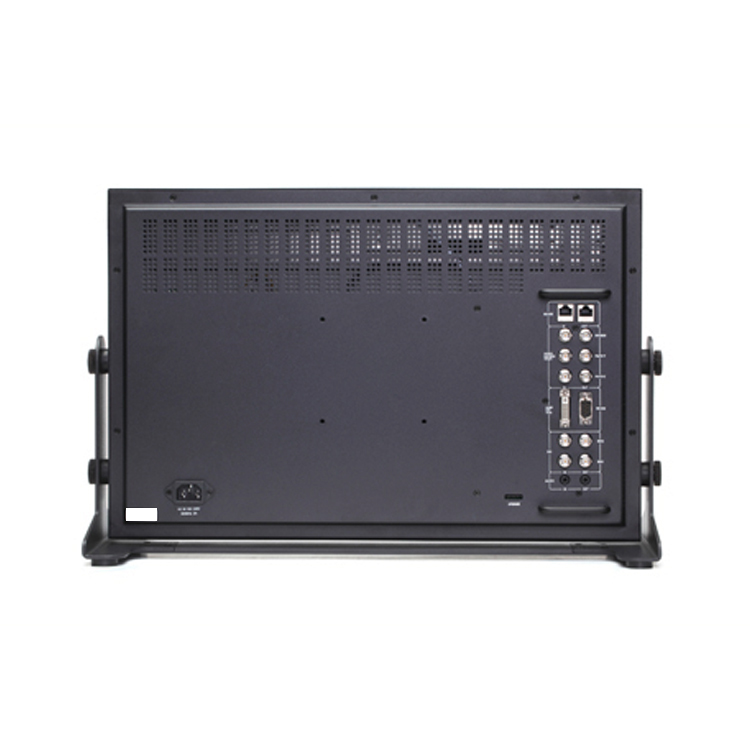

| Input |
| 2 × BNC |
SDI1/2 Channel Input (3G/HD/SD-SDI Auto-Detected) |
| 3 × BNC |
YPbPr/Video/Y/C |
| 1 × HDMI/DVI/VGA |
HDMI/DVI/VGA Input |
| Output |
| 2 × BNC |
SDI1/2 Channel Input (3G/HD/SD-SDI Auto-Detected) |
| 3 × BNC |
YPbPr/Video/Y/C |
| Compatible SDI Formats |
| 2 × BNC |
4:2:2 YCbCr 10-bit |
1080p(50/59.94/60) |
|
4:4:4 YCbCr/RGB 10-bit |
1080i(60/59.94/50) |
|
4:4:4 YCbCr/RGB 12-bit |
1080p(30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF) |
|
4:2:2 YCbCr 12-bit |
1080i(60/59.94/50) |
|
|
1080p(30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF) |
|
4:4:4 YCbCr/RGB 10-bit |
720p(60/59.94/50/30/29/25/24/23.98) |
|
1080i(60/59.94/50) |
| SMPTE-274M |
1080p(30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF) |
| SMPTE-296M |
720p(60/59.94/50/30/29/25/24/23.98) |
| SMPTE-260M |
1035i(60/59.94) |
| SMPTE-125M |
480i(59.94) |
| ITU－R BT.656 |
576i(50) |
| Audio In / Out |
| SDI Audio In |
8 Channel Embeded Audio |
| Audio Meter Display(VU+PPM) |
H/V Audio Level Meter Didsplay |
| Analog Audio Input |
3.5mm Headset Switch Cable |
| Audio Headset Output |
3.5mm Headset Jack |
| Built-in Speaker |
2.5W×2 |
| General |
| Operating Temperature |
-10℃～50℃ |
| Input Voltage |
AC 100-240V 50/60Hz / DC 12V |
| Power Consumption |
33W |
| Power-Saving Mode |
Turn off unimportant Key Automatically if No Signal Input |
| Unit/Packing Dimension |
530×350×54(mm) / 655x221x500(mm) |
| Net/Gross Weight |
7.62KG / 9.0KG |
| Shell Materials |
Aluminum on Front-Shell/Base Supporter/Rust-Proof iron on Back-Shell |
| Accessory |
Power Cord / Fastening screws / Manual |
| Optional |
DVI-HDMI adapter/Wall-Mount VESA bracket |
| Specifications may be changed without prior notice. |
