PB – 1951W(New!)
Model No. : PB - 1951W
Display Size : 19"
Resolution : 1920*1080
Aspect Ratio : 16:9
Introduction : Newly released 19" Full HD professional monitor, multi format 3G/HD-SDI Monitor with PIP/PBP, 2 SDI inputs and outputs, Waveform/Histogram/Vectorscope/Pi...
Description
Precision newly published PB – 1951W, Full HD 1920*1080 resolution LCD monitor, supports both DC and AC power, full video formats including 3Gbs SDI 4: 4: 4 signals and professional features. Utilizing the IPS LCD panel and combined with excellent video processing technology, it provides outstanding accurate colors and rich professional features.
Product Highlight
- 19″ 1920×1080 Resolution
- 12Bit video processing
- 3G/HD/SD-SDI Input&Loop through
- Composite&Component Input
- Dual Pictures (PIP/PBP) for 2 SDI Signals
- Support 3G-SDI, 4:4:4 signals (SMPTE 425M A/B)
- PIP/PBP in rapid swap
- Waveform(Y/CbCr,wide type,Waveform Alarm)
- Vectorscope (Vector Scale 75%/100%)
- Histogram (Y / RGB)
- Pixel Measure(Y/R/G/B Values Comparision)
- Picture Flip
- ×9 Zoom
- H/V Delay
- Focus Assist
- Blue Only/Mono
- False Color/Zebra
- 8ch Embedded Audio Meter(H/V)
- Full scan/Over Scan
- Color Temperature(9300K, 6500K, 5600K,User)
- UMD Support(ID/Positiion/Color/User Rename)
- OSD Setting
- PAL/NTSC/SECAM
- Timecode display (VITC1, VITC2, LTC)
- Various Markers
- Image Size Selectable
- RS-232/RS-485 Remote Control
- Tally
Specifications
| LCD |
| Display Size |
19〞 |
| High Resolution |
1920×1080 |
| Aspect Ratio |
16:9 |
| Wide Viewing Angle |
178°(H) / 178°(V) |
| Pixel Pitch |
0.2265×0.221(mm) |
| Color Depth |
16.7M |
| Response Time |
6ms |
| Back Light |
LED |
| Brightness |
30 0cd/m2 |
| Contrast Ratio |
1000:1 |

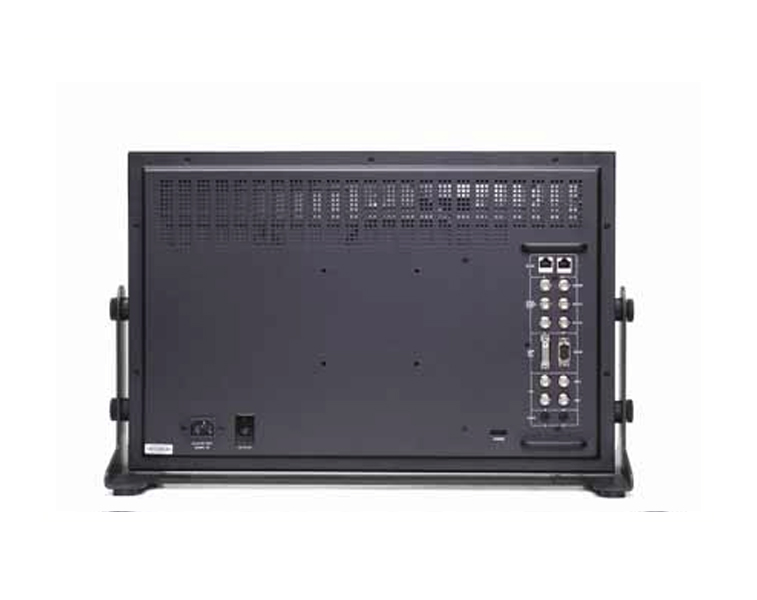

| Input |
| 2 × BNC |
SDI1/2 Channel Input (3G/HD/SD-SDI Auto-Detected) |
| 3 × BNC |
YPbPr/Video/ Y/C |
| 1 × HDMI/DVI/VGA |
HDMI/DVI/VGA Input |
| Output |
| 2 × BNC |
SDI Output (3G/HD/SD-SDI Auto-Detected) |
| 3 × BNC |
YPbPr/Video/Y/C |
| Compatible SDI Formats |
| SMPTE-425M-A/B |
4:2:2 YCbCr 10-bit |
1080p(50/59.94/60) |
|
4:4:4 YCbCr/RGB 10-bit |
1080i(60/59.94/50) |
|
4:4:4 YCbCr/RGB 12-bit |
1080p(30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF) |
|
4:2:2 YCbCr 12-bit |
1080i(60/59.94/50) |
|
|
1080p(30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF) |
| 4:4:4 YCbCr/RGB 10-bit |
720p(60/59.94/50/30/29/25/24/23.98) |
| SMPTE-274M |
1080i(60/59.94/50) |
|
1080p(30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF) |
| SMPTE-296M |
720p(60/59.94/50/30/29/25/24/23.98) |
| SMPTE-260M |
1035i(60/59.94) |
| SMPTE-125M |
480i(59.94) |
| ITU－R BT.656 |
576i(50) |
| Audio In / Out |
| SDI Audio In |
8 Channel Embedded Audio |
| Audio Meter Display(VU+PPM) |
H/V Audio Level Meter Display |
| Analog Audio Input |
3.5mm Headset Switch Cable |
| Audio Headset Output |
3.5mm Headset Jack |
| Built-in Speaker |
2.5W×2 |
| General |
| Operating Temperature |
-10℃～50℃ |
| Input Voltage |
AC 100-240V 50/60Hz/DC 12V |
| Power Consumption |
35W |
| Power-Saving Mode |
Turn off unimportant Key Automatically if No Signal Input |
| Accessory |
Power Cord / Fastening screws / Manual |
