PB – 1750W
Model No. : PB - 1750W
Display Size : 17"
Resolution : 1920x1080
Aspect Ratio : 16:9
Introduction : 17" Full HD Monitor, with full features: waveform,vectorscope, Histogram, PIP/PBP for 2 SDI, Pixel Measure, Focus assist, Flase color, etc
Description
The PB – 1750W,dual SDI signals display of PIP/PBP, custom setting UMD, select table RS-232/RS485 remote control with self-innovative pixel measurement function and more. All these advanced features make it a premium monitoring solution for rack mount, desktop, post production, broadcast field use etc.
Product Highlight
- 17″ 1920×1080 Resolution
- 3G/HD/SD-SDI Input & Loop through
- Composite & Component Input
- Dual Pictures (PIP/PBP) for 2 SDI Signals
- PIP/PBP(Size / Position Adjustable, Alpha Blending( PIP ))
- PIP/PBP in rapid swap
- Waveform(Y/CbCr,Wide Type,Waveform Alarm)
- Vector scope (Vector Scale 75%/100%)
- Histogram (Y / RGB)
- Pixel Measure(Y/R/G/B Values Comparision)
- H Flip
- ×9 Zoom
- H/V Delay
- Focus Assist
- Blue Only/Mono
- False Color/Zebra
- 8ch Embedded Audio Meter(H/V)
- Full scan/Over Scan
- Color Temperature(9300K, 6500K, 5600K, User)
- UMD Support(ID/ Position/ Color/ User Rename)
- Time Code(VITC1, VITC2, LTC)
- PAL/NTSC/SECAM
- OSD Setting
- Various Marker
- Image Size Select table
- RS-232/RS-485 Remote Control
- 19″ Standard Rack mount
- Tally
Specifications
LCD |
Display Size |
17〞 |
High Resolution |
1920×1080 |
Aspect Ratio |
16:9 |
Wide Viewing Angle |
178°(H) / 178°(V) |
Pixel Pitch |
0.199×0.199(mm) |
Color Depth |
1.073G(True 10bit) |
Response Time |
5ms |
Back Light |
LED |
Brightness |
300cd/m2 |
Contrast Ratio |
1000:1 |

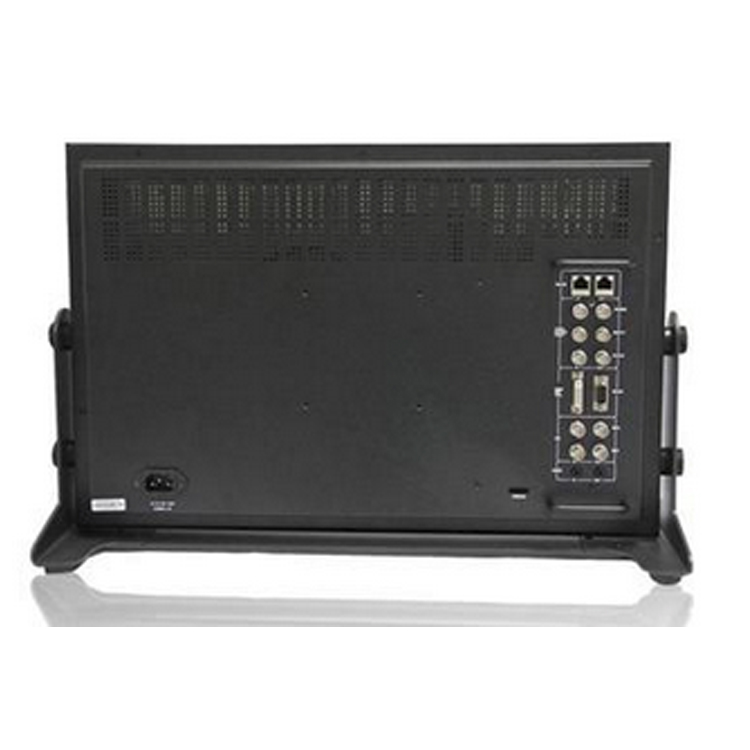

Input |
2 × BNC |
SDI1/2 Channel Input (3G/HD/SD-SDI Auto-Detected) |
3 × BNC |
YPbPr/Video/ Y/C |
1 × HDMI |
DVI/HDMI/VGA Input |
Compatible SDI Formats |
SMPTE-425M |
1080p(50/59.94/60) |
SMPTE-274M |
1080i(60/59.94/50)
1080p(30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF) |
SMPTE-296M |
720p(60/59.94/50/30/29.97/25/24/23.98) |
SMPTE-260M |
1035i(60/59.94) |
SMPTE-125M |
480i(59.94) |
ITU-R BT.656 |
576i(50) |
Audio In / Out |
SDI Audio In |
8 Channel Embedded Audio |
Audio Meter Display(VU+PPM) |
H/V Audio Level Meter Display |
Analog Audio Input |
3.5mm Headset Switch Cable |
Audio Headset Output |
3.5mm Headset Jack |
Built-in Speaker |
2.5W×2 |
General |
Operating Temperature |
-10℃~50℃ |
Input Voltage |
AC 100-240V 50/60Hz |
Power Consumption |
30W |
Power-Saving Mode |
Turn off unimportant Key Automatically if No Signal Input |
Unit/Packing Dimension |
580X550X160(mm) |
Net/Gross Weight |
5.18KG / 6.3KG |
Shell Materials |
Aluminum on Front-Shell/Base Supporter/Rust-Proof iron on Back-Shell |
Accessory |
Power Adaptor |
Optional |
DVI-HDMI adapter/Rackmount bracket/Wall-Mount VESA bracket |
specifications may be changed without prior notice. |
